PET Sheet Extrusion Line
(Single screw production line for PET sheet）
Gwell PET sheet extrusion production line is company's strategic continuous improvement model.The raw materials can be APET, PETG, RPET, etc.
Introduction of PET sheet machine：

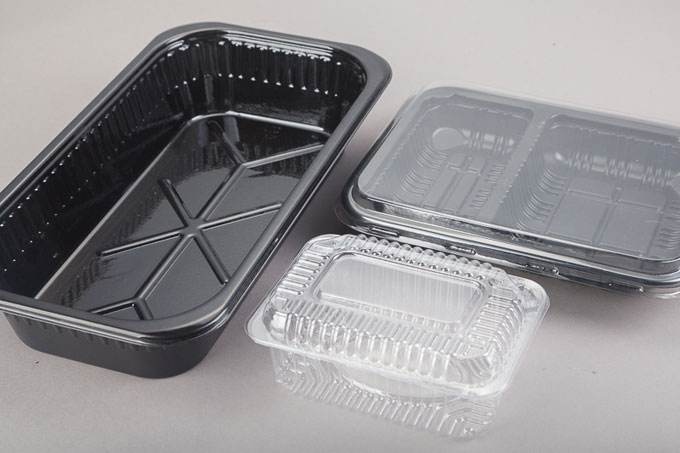

1. Single screw production line for PET sheet: single screw extrusion production line for APET, PETG and CPET sheet is the most mature project with the most stable production at present. Generally, single extruder production line or twin-extruder production line is adopted and Gwell uses the latest technology to increase the general efficiency by 30%.The transparency of PET sheet can reach optical level.However, this model has very high requirements for raw material processing, and the PET raw material needs to be crystallized and dried. This can ensure that the produced PET sheet has no crystal points, whiteness, and poor transparency. The main features of PET high transparency sheet: impact resistance, excellent processability, good chemical resistance, and good insulation.The main applications of PET high transparency sheet: food packaging and gift packing
2. PET high transparent sheet single-screw exhaust production equipment: APET, PETG, CPET sheet single-screw exhaust extrusion production line is improved from the PET high-transparent sheet production equipment, which increases the exhaust function, Make the material in the screw barrel easier to remove the gas and excess water in the material. This equipment is not very strict on raw material processing. It only needs to crystallize the raw materials without drying. The quality of the products produced is also very good.
3. PET sheet twin-screw exhaust production line: APET, PETG, CPET sheet twin-screw exhaust extrusion production line is improved from PET sheet single-screw production equipment. The raw material processing non-crystallization, non-drying exhaust type PET sheet unit of this production equipment has the advantages of low energy consumption and high efficiency. This model is a continuous improvement and upgrade product of Gwell. It has made significant improvements to the core vacuum system. The technology upgrades from the original Roots-water ring pump set to the Roots-rotary vane pump set, which can make the vacuum reach ≤10Pa. At the same time, the PET special alloy steel thin-walled roller set is used to greatly improve the cooling efficiency, thereby increase output, improve product toughness and transparency. The operating system independently written by Gwell ensures the humanization and easy operation of the equipment.
4. PET sheet planetary multi-screw exhaust production line (free of crystallization and drying): the planetary screw extruder is used as the main extruder, which increases the area for material and air, and cooperates with the vacuum system newly developed by Gwell. This machine model meets the needs of customers for large-volume, high-quality sheets.
2. PET high transparent sheet single-screw exhaust production equipment: APET, PETG, CPET sheet single-screw exhaust extrusion production line is improved from the PET high-transparent sheet production equipment, which increases the exhaust function, Make the material in the screw barrel easier to remove the gas and excess water in the material. This equipment is not very strict on raw material processing. It only needs to crystallize the raw materials without drying. The quality of the products produced is also very good.
3. PET sheet twin-screw exhaust production line: APET, PETG, CPET sheet twin-screw exhaust extrusion production line is improved from PET sheet single-screw production equipment. The raw material processing non-crystallization, non-drying exhaust type PET sheet unit of this production equipment has the advantages of low energy consumption and high efficiency. This model is a continuous improvement and upgrade product of Gwell. It has made significant improvements to the core vacuum system. The technology upgrades from the original Roots-water ring pump set to the Roots-rotary vane pump set, which can make the vacuum reach ≤10Pa. At the same time, the PET special alloy steel thin-walled roller set is used to greatly improve the cooling efficiency, thereby increase output, improve product toughness and transparency. The operating system independently written by Gwell ensures the humanization and easy operation of the equipment.
4. PET sheet planetary multi-screw exhaust production line (free of crystallization and drying): the planetary screw extruder is used as the main extruder, which increases the area for material and air, and cooperates with the vacuum system newly developed by Gwell. This machine model meets the needs of customers for large-volume, high-quality sheets.

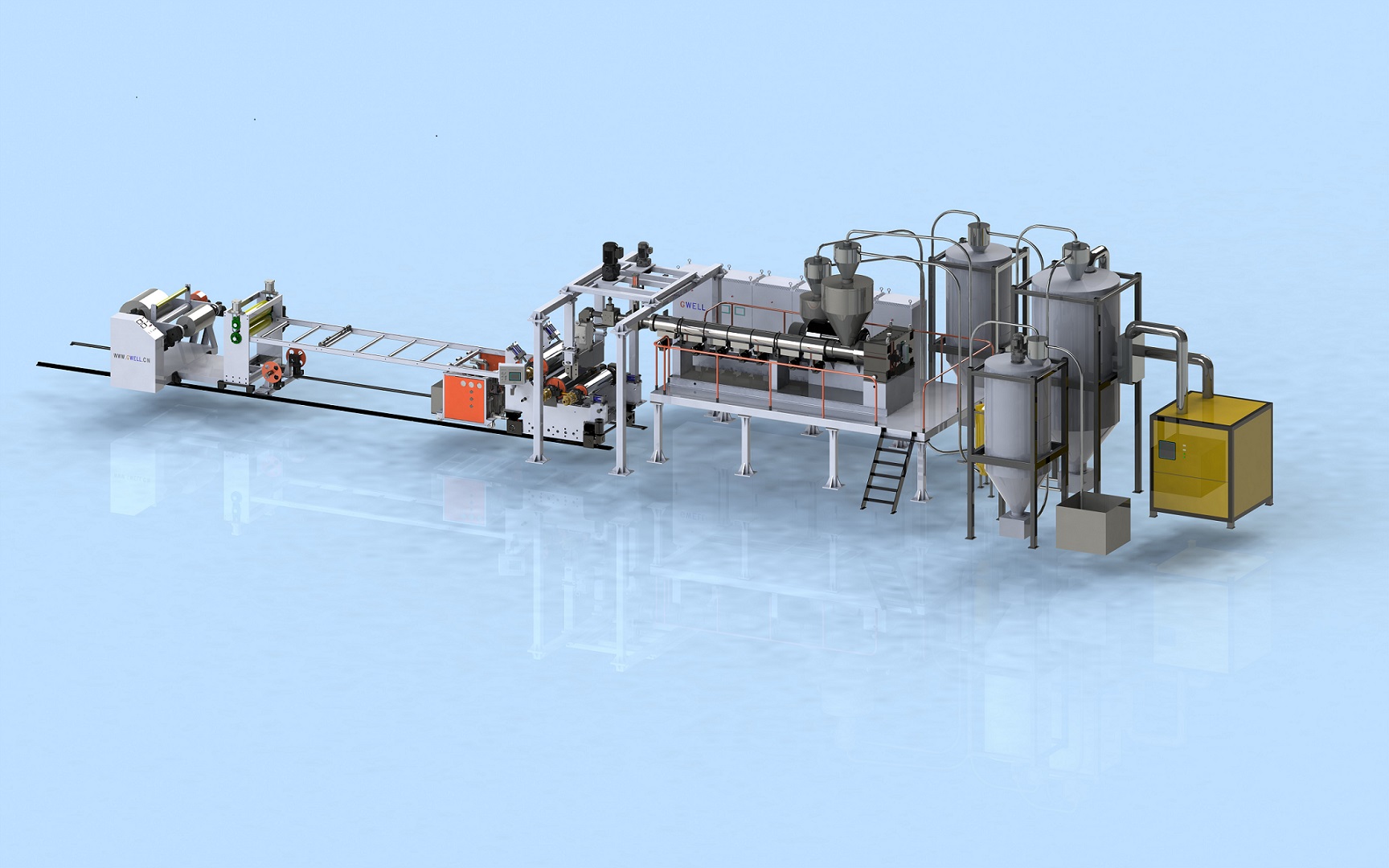

（ twin-screw exhaust extrusion line for crystallization-free drying PET sheet） （PET sheet planetary multi-screw exhaust production line）
Using multiple extruder co-extrusion technology to produce multi-layer co-extrusion composite pet sheets, such as AB, ABA and other multi-layer structures。which are widely used in thermoforming, printing,decorative pieces,gift packing,Furniture surface decoration etc.
* equipped with precise distributor, evenly layered, adjustable proportion of each layer, digital precise control.
* inclined horizontal structure, easy to operate and maintain.
* roller independent power, linear speed and extruder speed synchronous closed-loop control.
* the whole machine adopts PLC control to realize automatic control of parameter setting, data operation, feedback, alarm and other functions.
*Gwell independently wrote the electronic control operating system
* inclined horizontal structure, easy to operate and maintain.
* roller independent power, linear speed and extruder speed synchronous closed-loop control.
* the whole machine adopts PLC control to realize automatic control of parameter setting, data operation, feedback, alarm and other functions.
*Gwell independently wrote the electronic control operating system
| type | Single extruder production line | single-screw exhaust production line | twin-screw exhaust production line | planetary multi-screw exhaust production line |
| Material handling | crystallization and drying | free of crystallization and drying | free of crystallization and drying | free of crystallization and drying |
| Product structure | AB, ABA and other multi-layer structures | |||
| Product width | 600mm-1220mm | |||
| Product thickness | 0.17mm-2mm | |||
| Output | 200KG/H-1000KG/H (There will be output differences among different machine models) | |||
