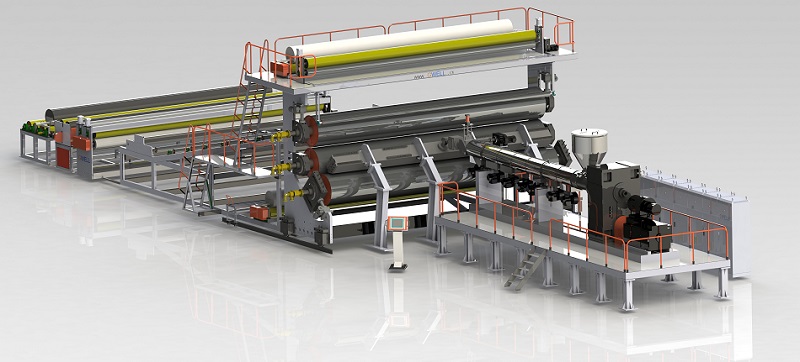

PE Geomembrane And Waterproof Coiled Material Extrusion Line
Purpose: roof waterproofing of industrial and civil buildings, including planting roof, flat roof, sloping roof, railway and high-speed railway waterproof(CRCC), underground waterproof of buildings: including reservoir, dam, pool waterproof, tunnel, grain depot, civil air defense engineering, garbage landfill, artificial lake waterproof, etc.
China GWELL mechanical wide PE waterproof coiled material equipment has several models of 2m, 4m, 6m, 7m and 8m. It has many successful cases.
Parameters of ultra wide PE waterproof coiled material production line (please consult the sales engineer for details)
Type | Single screw GWS150 | Single screw GWS180 | Single screw GWS200 | Parallel twin screw GWP95 | Parallel twin screw GWP135 |
| raw material | LDPE、LLDPE、HDPE、EVA、ECB、M-PE | LDPE、LLDPE、HDPE、EVA、ECB、M-PE | LDPE、LLDPE、HDPE、EVA、ECB、M-PE | LDPE、LLDPE、HDPE、EVA、ECB、M-PE | LDPE、LLDPE、HDPE、EVA、ECB、M-PE |
| width | 2000-4000mm | 4000-6000mm | 6000-8000mm | 4000-8000mm | 4000-8000mm |
| thickness | 1.0-3.0mm | 1.0-5.0mm | 1.0-5.0mm | 1.0-3.0mm | 1.0-5.0mm |
| output | 650-850KG/H | 850-1000KG/H | 1000-1200KG/H | 1200-1500KG/H | 1200-1800KG/H |
