PE Drainage / Water Storage Plate, T-girp Water Stop Plate Extrusion Line
Views: Date:2022-01-22

T-girp reinforced concrete drainage pipe lining plate production line

1、 Product concept:

As the main product of traditional municipal drainage and sewage engineering, reinforced concrete drainage pipe has been widely accepted and applied, and has its own advantages and reputation. With the rapid development of industry, there are more and more acidic and toxic substances in sewage (especially industrial wastewater), which have a certain erosion on the concrete on the inner wall of the drainage pipe and affect the service life of the pipeline. Therefore, various anti-corrosion drainage pipes came into being, such as steel cylinder concrete pipe, glass sand pipe, double wall corrugated pipe, PVC pipe, etc., but there are obvious limitations in practical application, and there is a great pressure of environmental pollution in the production process, which is not an environmental protection product.

T-girp reinforced concrete lined modified polyethylene drainage pipe (hereinafter referred to as PE inner lining pipe) not only follows the advantages of traditional reinforced concrete drainage pipe, such as economy and practicality, convenient installation and good stiffness, but also has good anti-corrosion effect and small water flow resistance.

Comparison of advantages and disadvantages of various pipes

Pipe typeCorrosion resistanceHydrodynamic resistancerigidityPriceExcavation constructionJacking construction
Steel tube concrete pipeno
largegoodhighyes
reluctantly
Glass sand pipeyessmallcommonlyhighyesyes
Double wall bellowsyessmalldifferencecommonlyyesno
Reinforced concrete drainage pipenolargegoodcheapyesyes
PE inner lineryessmallgoodmoderateyesyes

2、 Material use

Compared with ordinary reinforced concrete pipe (RCP), the raw materials used for PE inner lining pipe are exactly the same, and only one layer of modified PE anti-corrosion sheet is added. It is made of polyethylene as the main raw material and other modified auxiliary materials through high temperature and high pressure extrusion. At present, the PE anti-corrosion sheet we use is generally imported from Taiwan, which is divided into T-type key and rhombic key. The T-shaped key structure is suitable for vertical production and core mold production process, and the rhombic key structure is suitable for core mold production and centrifugal production process.

PE anti-corrosion sheet is generally coiled material, the thickness is required to be no less than 1.5mm, the width can be adjusted within 1.5m, and the length can be adjusted arbitrarily. For the convenience of transportation and handling, the total length of the whole roll is generally 30m. The anti-corrosion sheet has good hot fusion performance, and can be easily welded with a hot-air welding gun to splice a format of any size and shape.

3、 Production process

As a part of the pipeline, PE lining layer mainly plays the role of enhancing anti-corrosion performance, improving pipeline hydraulic performance and ensuring pipeline sealing performance. Its combination with the inner wall of reinforced concrete pipeline mainly depends on mechanical embedding.

4、 Finished product handling and inspection

(1) after the formwork of the inner lining pipe is removed, the lap joint of PE film on the inner wall of the pipe shall be cleaned and welded to make the pipe lining form a closed whole.

(2) in addition to the conventional appearance dimensions, the following inspection items shall be carried out for the inspection of inner lining pipe: external pressure load, internal water pressure, spark insulation inspection, pull-out strength inspection of fixed key, etc.

5、 Engineering application and Prospect

In China, the application of PE inner liner pipe has only been a short two years, but the momentum of development is very strong. At present, this kind of pipe is basically used in the sewage project in Dongguan City, Guangdong Province, and is also being popularized in Shenzhen City, Zhanjiang City and other places. In addition, it is gradually adopted and applied in Fujian, Ningbo and other provinces and cities. In foreign countries, such as India, the Middle East, Africa and other countries and regions, it is a popular process to use T-grip lining plate nested reinforced cement pipe inner wall for drainage pipe.

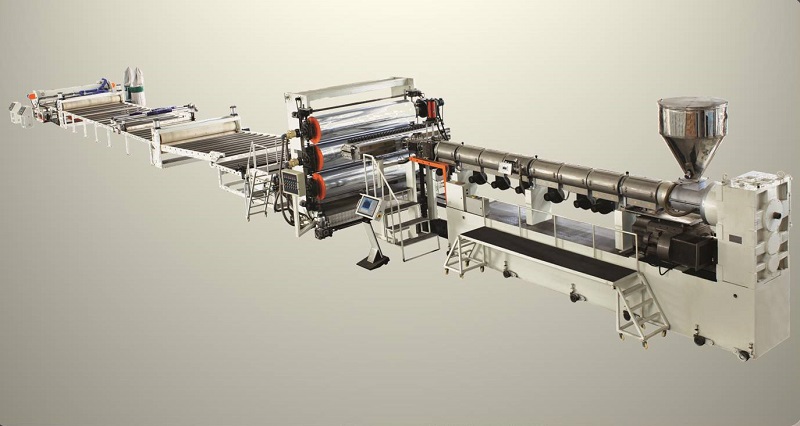

PE drainage / water storage plate extrusion production line

The main function of polyethylene (HDPE) waterproof and drainage board is water diversion and drainage. The concave convex hollow vertical bar structure can quickly and effectively export rainwater, greatly reduce or even eliminate the hydrostatic pressure of the waterproof layer. Through this water diversion principle, the effect of active drainage can be achieved, and the reliable connection method can make the waterproof and drainage board a good auxiliary waterproof material. The waterproof and drainage board can effectively protect the structure and waterproof layer, and resist all kinds of acid and alkali in the soil and root thorns of plants. When backfilling the outer wall of the basement, it can protect the building and waterproof layer from damage. Laboratory data show that polyethylene (HDPE) waterproof and drainage board can effectively reduce indoor noise of 14 dB and 500Hz, and has obvious noise reduction and sound insulation function. When the waterproof water guide plate is used on the ground or wall, it can also play a good role in ventilation and moisture-proof. When it is used as external wall insulation material, it is generally used together with XPS insulation plate. It is a compulsory material in northern countries or regions. When used as a water storage board, the water storage capacity of the two cm high water storage board is about 4kg per square meter, which can provide a suitable environment for vegetation growth. It is one of the ideal materials for the fourth generation of buildings.

The application of polyethylene (HDPE) waterproof and drainage board is as follows: landscape engineering, such as garage roof greening, roof garden, roof greening, football field, golf course, bathing beach engineering, etc; Municipal works, such as road subgrade, subway tunnel, etc; Construction works, such as upper or lower layers of building foundation, indoor and outdoor walls of basement, roof anti-seepage and thermal insulation layer, etc; Traffic engineering, such as highway, railway subgrade, embankment and slope protection layer, etc.

Parameters of special-shaped plate production line of PE drain / water storage plate and t-girp water stop plate

modelGWS120GWS150GWP75GWP95
HDPE raw materialParticle and crushingParticle and crushingParticle, crushing and powderParticle, crushing and powder
Product thickness0.3-3mm1-10mm0.3-3mm1-10mm
Product width1200mm1500mm1200mm1500mm
capacity400KG/H600KG/H400KG/H600KG/H
